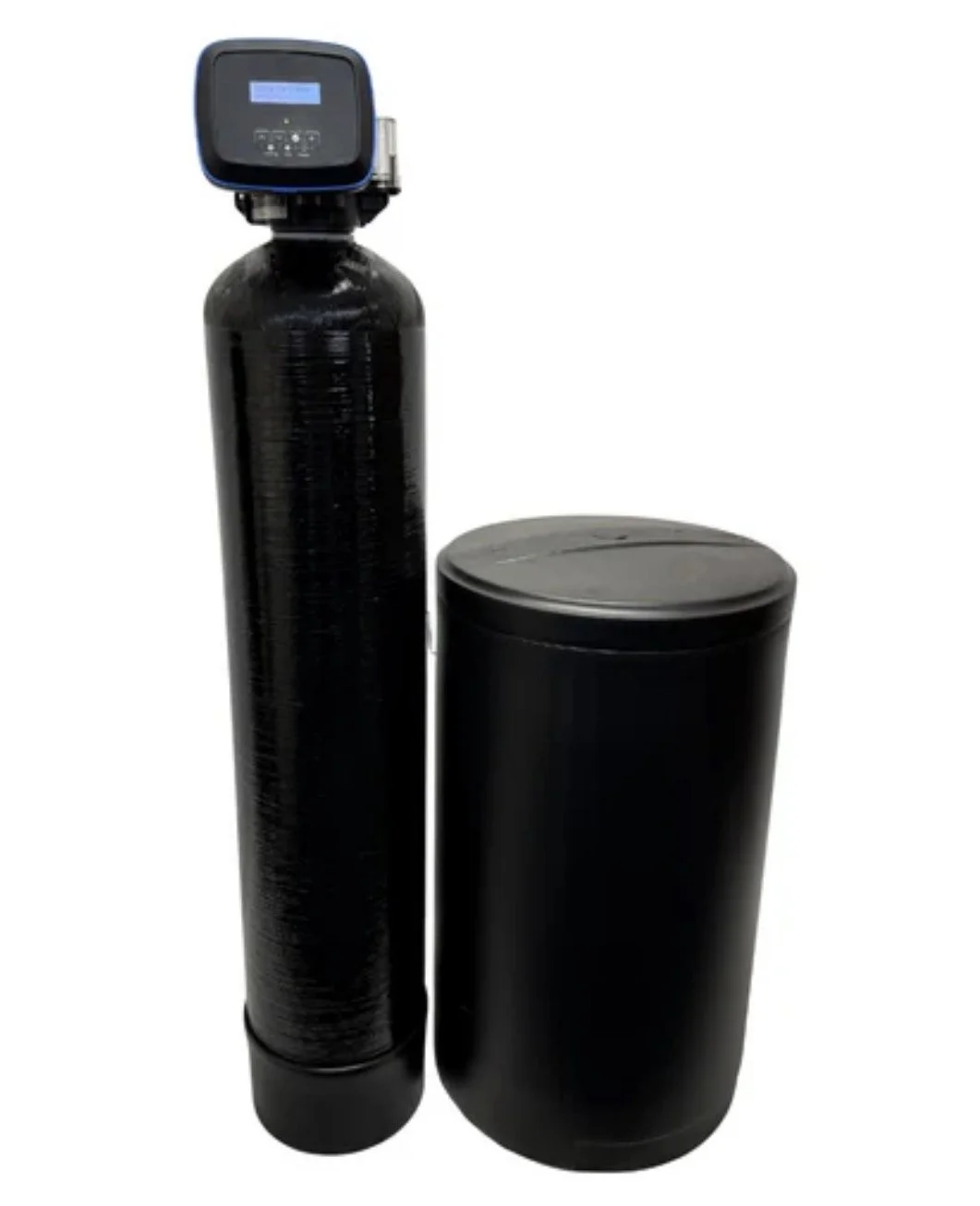

Autotrol 255/760 Logix Softener
Autotrol 255/760 Logix Softener
NOTE: Chlorine Reduction System (KDF) Available in Sizing options ($200)
Time-tested Duraflow flapper provides frictionless sealing for longer service life
Fiber-reinforced polymer valve body for superior strength and durability, non-corrosive, and UV-resistant
Environmental protective cover for water resistance, corrosion resistance, and UV stability
Super capacitor for keeping time of day during power outage
Designed for single or multiple tank systems
Optical sensor for precision cycle positioning
Designed with double backwash for reduced hardness leakage
Fully adjustable 5 or 8 cycle control for efficient and reliable water treatment system
Continuous service flow rate of 15.5 GPM with a backwash of 6 GPM
Programming stored in memory and will not be lost due to power outages
History data for valve performance
Specifications:
Water Softener featuring the Autotrol 255 body and 760 Logix controller
Meter initiated water softener meaning it will regenerate based on the amount of water used.
Install Location: Point of Entry
Resin Tank Size: 9" X 48"(33,000 Grain), 10" X 54" (50,000 Grain), 12" X 52" (64,000 Grain)
By-pass
Distributor Pilot: 1"
Softener resin Capacity: 1.0 cu ft (33,000 Grain), 1.5 cu ft (49500 Grain), 2.2 cu ft (64,000 Grain)
Brine (Salt) Tank: Round 18" x 30" or Square 14" x 14" x 34”
Brine Tank Safety Float with 3/8"brine line
3/4" copper connectors
